Name: Shutter Module For Face Plate
Brand: JE
SKU: SF-2443-SGJW
Price: 5 AED
Availability: InStock

Email to a Friend

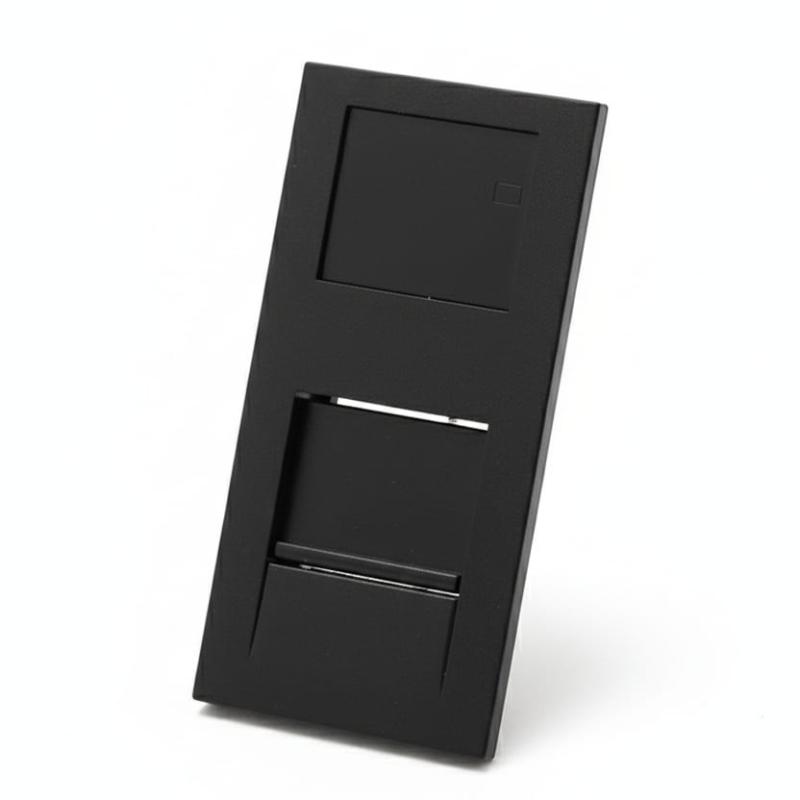

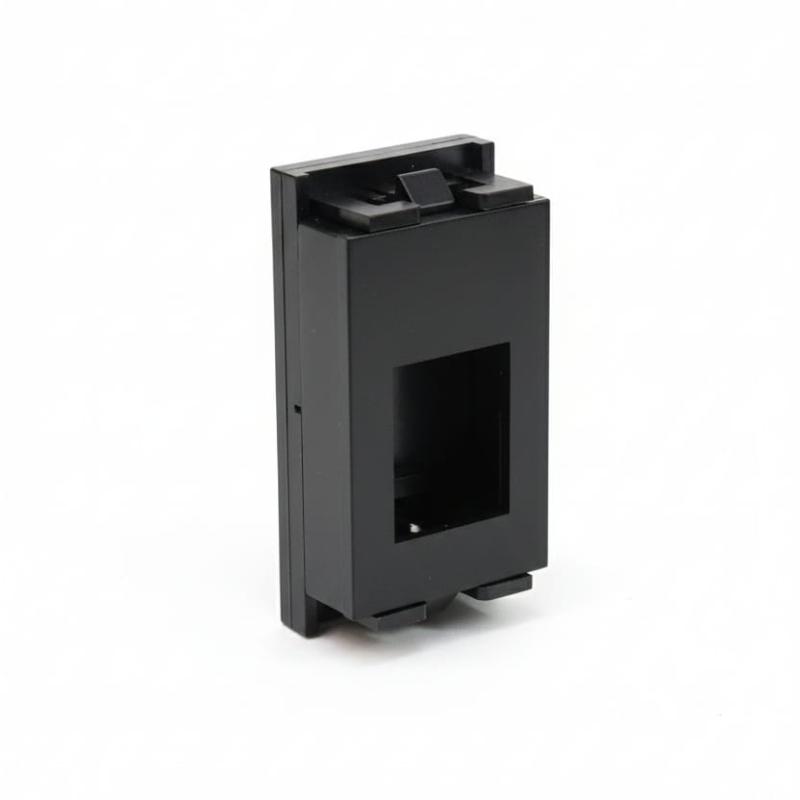

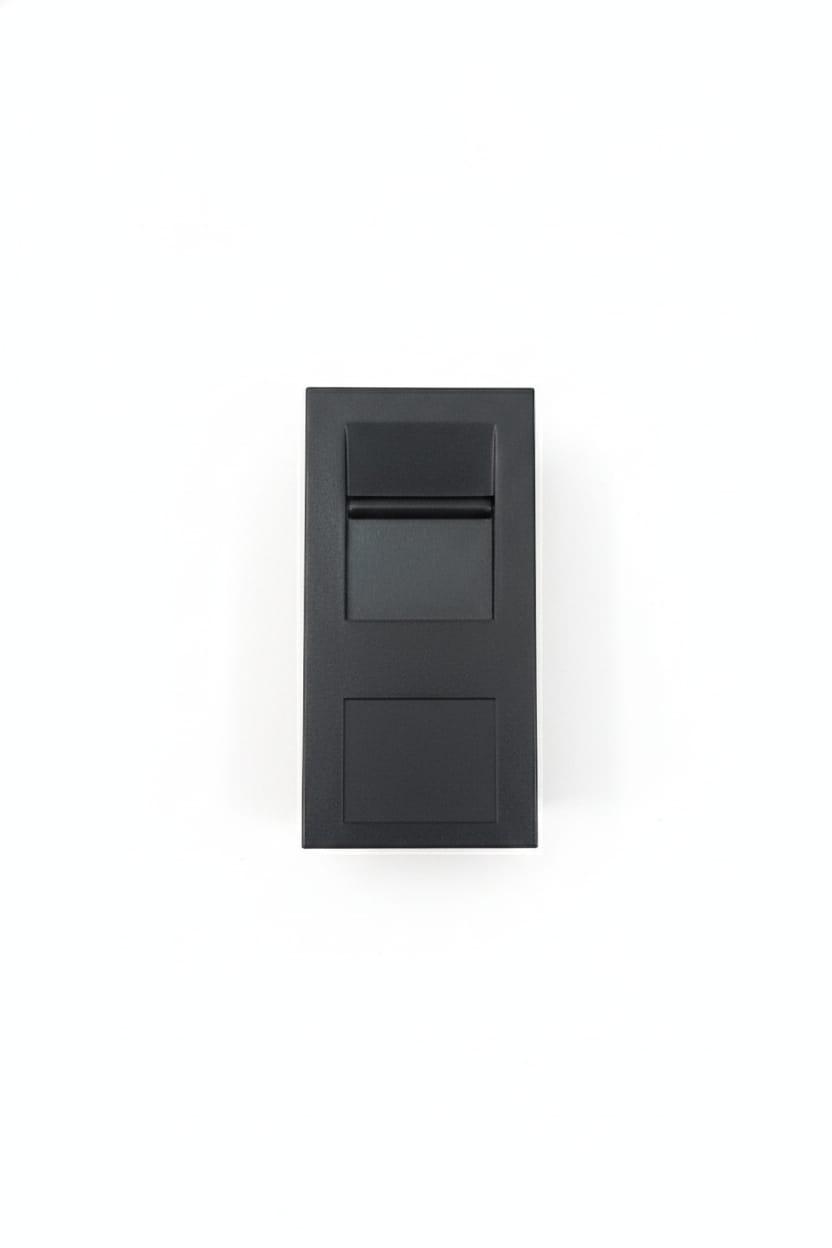

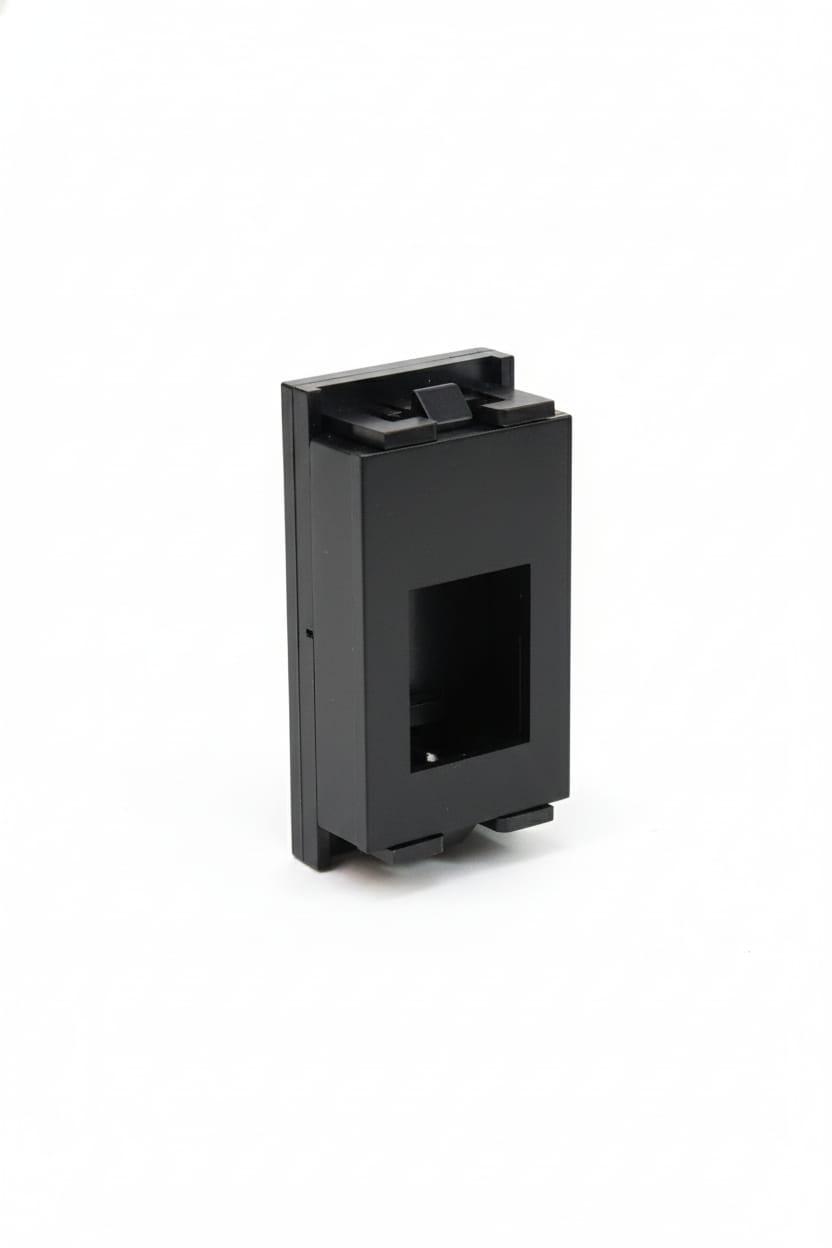

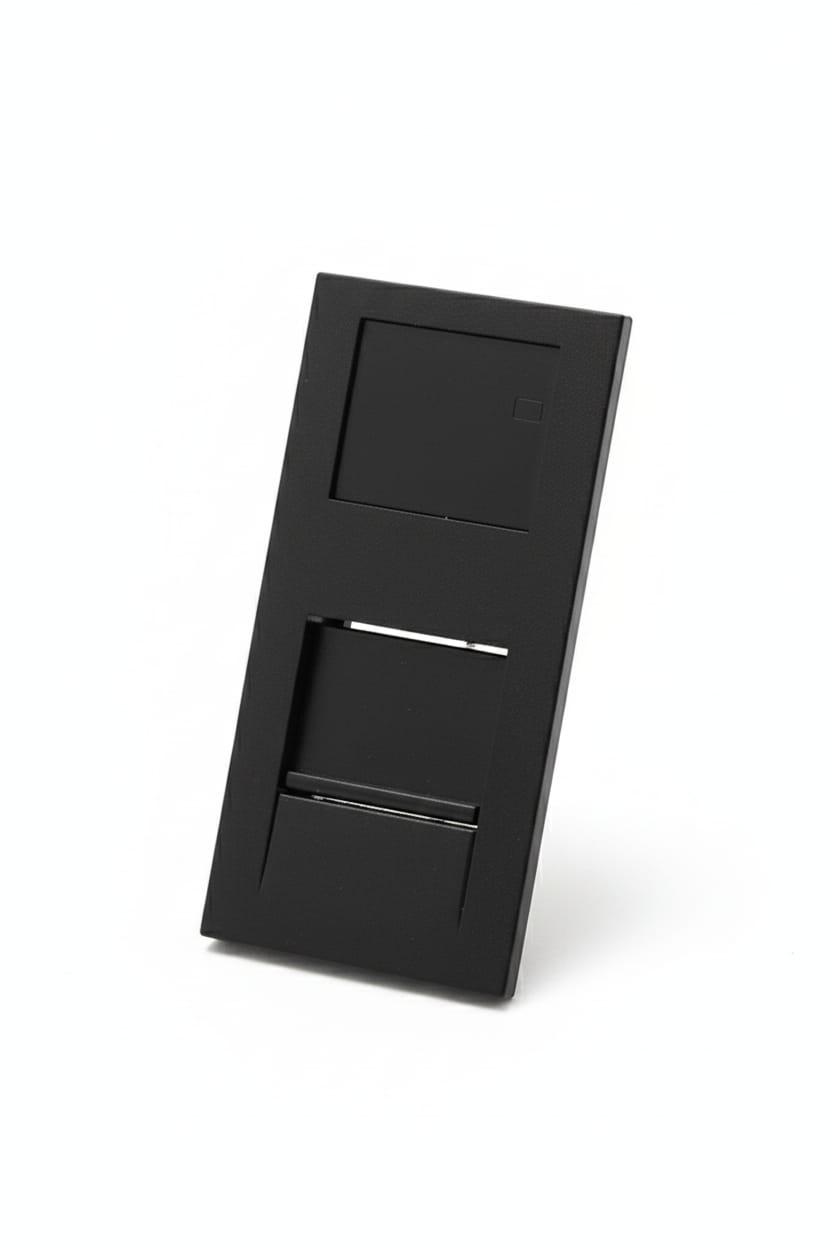

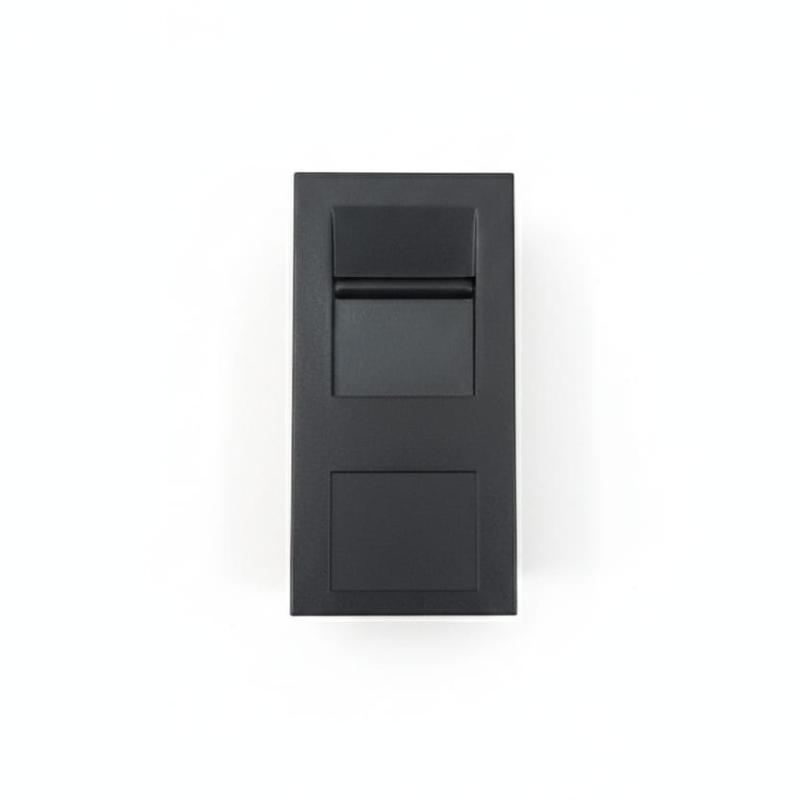

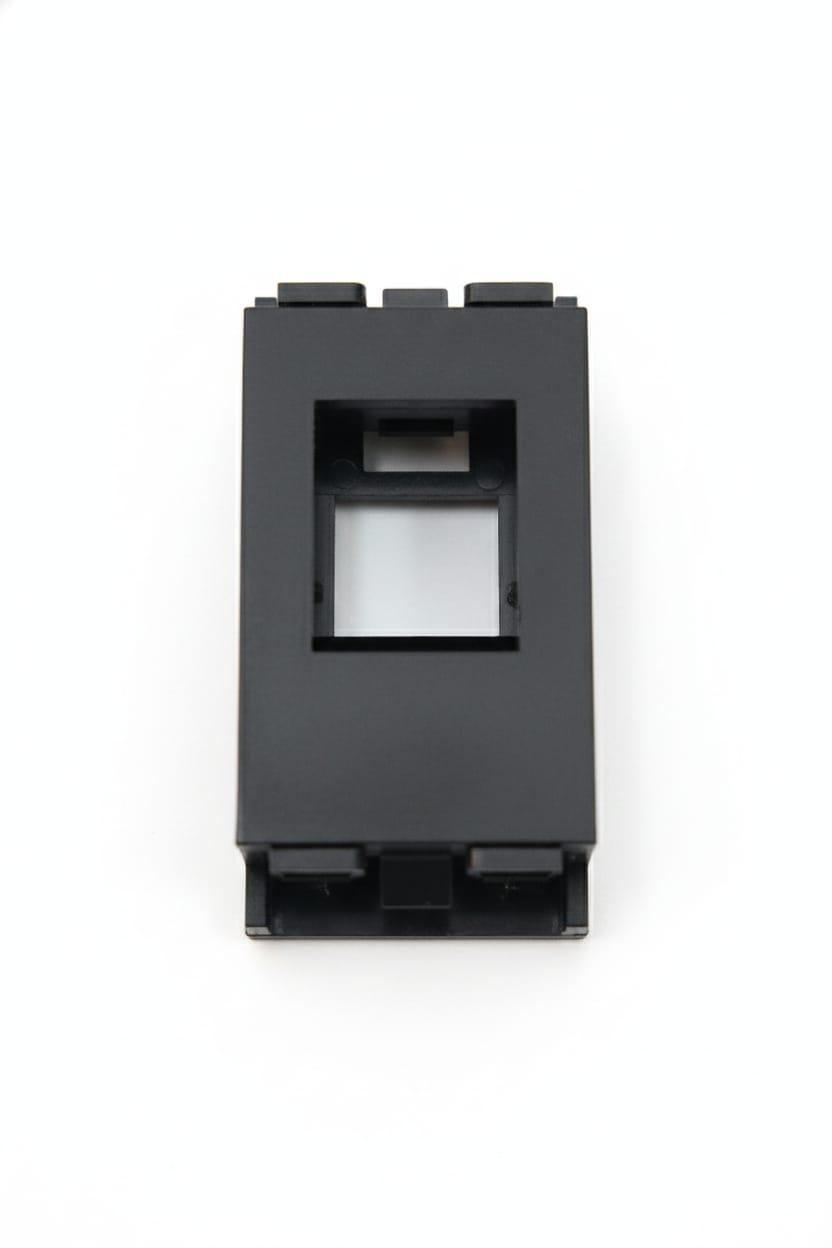

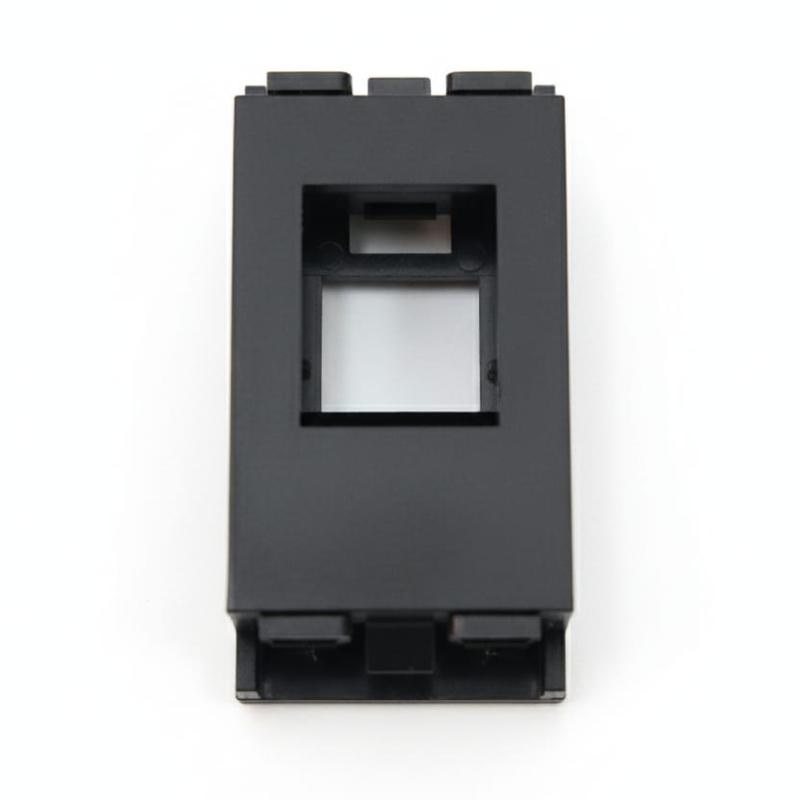

Shutter Module For Face Plate

Brands: JE

AED 5.00 AED 10.00 -50% Off

Brand: JE
Type: Shuttered module insert for faceplates
Color: Black (also available in white)
Material: High-impact ABS plastic, flame-retardant (UL94-V0)
Design: Rectangular module with integrated shutter and snap-in mounting tabs

Feature	Details
Port Type	RJ45 keystone jack (Cat5e/Cat6/Cat6A compatible)
Shutter Mechanism	Spring-loaded or sliding cover for dust protection
Orientation	Straight or angled (depending on model variant)
Material Rating	UL94-V0 flame-retardant ABS
Compliance	RoHS, ISO/IEC 11801, TIA/EIA-568-C.2
Mounting	Snap-in to JE faceplates (e.g., JE327W1, JE336 series)
Cable Support	AWG 22–24 solid or stranded conductors
Insertion Cycles	Rated for 750+ mating cycles

Faceplate Compatibility: Fits modular faceplates with 86 mm × 86 mm dimensions
Jack Termination: Accepts punch-down or tool-less keystone jacks
Labeling Area: Optional label slot above shutter for port identification
Use Case: Ideal for structured cabling in offices, homes, and data centers
